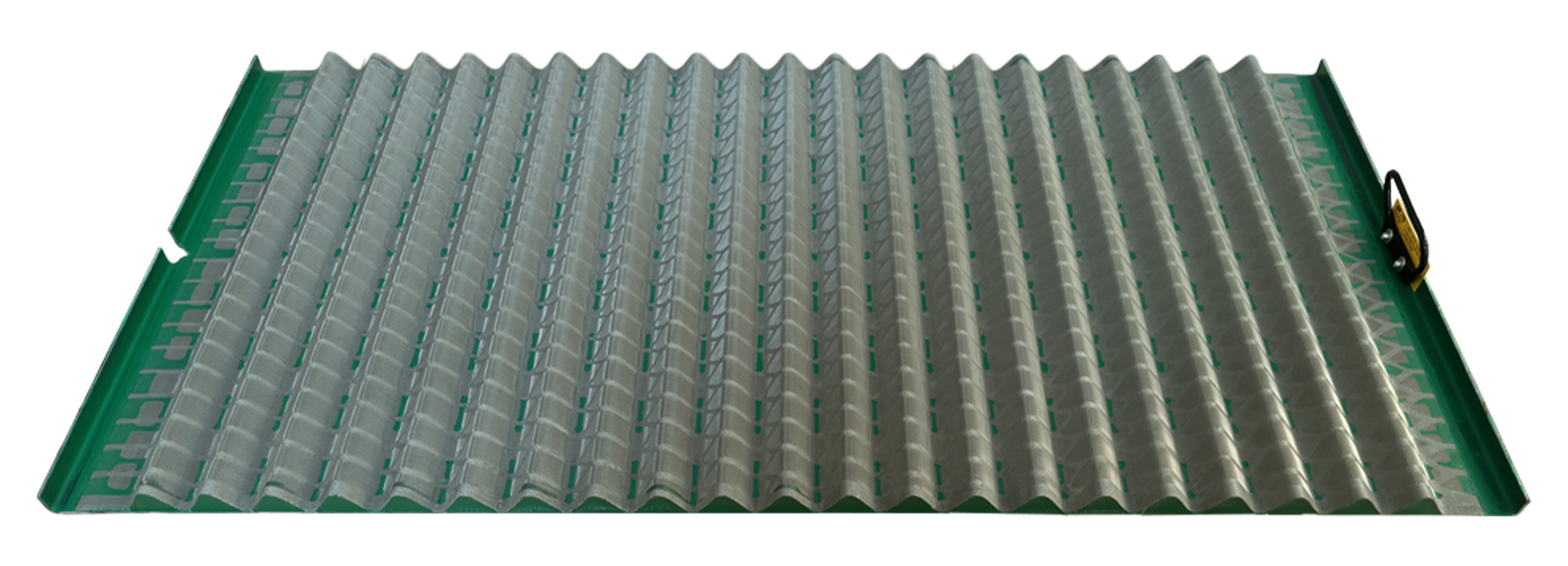

In structural and solids control systems, screens are a key component in determining vibratory screening efficiency and slurry cleanliness. The YP-HYP vortex replacement screen, by combining a corrugated (wave) frame with a high-rise screen structure, offers a larger effective screening area than traditional screens. This increases screening capacity and reduces frequency, ultimately delivering significant economic benefits to the building site.
YP-HYP screens are typically manufactured from SS304 or SS316 stainless steel, with mesh sizes ranging from 10 to 400 mesh, offering a balanced combination of corrosion resistance and screening accuracy. In oily or complex slurries, stainless steel effectively resists chemical attack and humid, hot environments, ensuring long-term stable operation and extending the screen's service life.
While retaining the fine grading capabilities of the multi-layer screen, the corrugated design significantly increases the screen surface area through a three-dimensional curved or wavy frame, increasing the amount of mud passing through per unit time, thereby reducing the load on the vibrating screen and optimizing solid-liquid separation. This structure is particularly effective for operations requiring fine screening and high production capacity.
Using YP-HYP shaker replacement screens in drilling, cementing and mud processing units can achieve more detailed solids removal, reduce the solids content in the mud circulation, and thus reduce the frequency of drilling fluid formulation adjustments and material consumption.
To determine the best mesh size and frame type for your application, we recommend providing on-site mud samples and operating parameters for customized selection and rapid delivery support. Contact us for detailed technical information and sample testing services.
