In oil and gas drilling operations, the efficiency of the solids control system directly impacts the overall project ROI. The importance of the Shale Shaker Screen, as the first line of defense in the solids control system, is self-evident.
As a professional Shale Shaker Screen manufacturer, Yuanpeng has prepared this in-depth guide, covering everything from product types and API RP 13C standards to how to select the best fit for mainstream equipment such as Brandt and Derrick.
Ⅰ. What is Shale Shaker Screen?
The Shale Shaker Screen is a core consumable component of a drilling vibratory screen. Its function is to separate expensive drilling fluid (mud) from harmful cuttings particles through high-frequency shaker. High-quality screens minimize mud loss and protect downstream equipment (such as desanders, desilters, and centrifuges) from wear.
Ⅱ. Core Category: Choosing the Right Screen Structure for You
To cope with different formations and drilling conditions, screens are classified in various structural designs:
1. Frame Type: Composite Frame vs. Steel Frame
• Composite Frame Shaker Screen: Made of high-strength composite materials with embedded steel reinforcement. It has excellent corrosion resistance and will not deform during storage and high G-force operation.
• Steel Frame Shaker Screen: A classic choice, made of high-strength square tubing, offering excellent physical rigidity and cost-effectiveness.
2. Surface Shape: Wave Type vs. Flat Screen

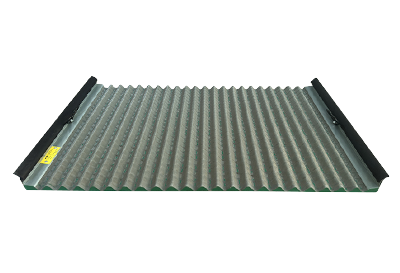

• Wave Type/Pyramid Screen: Through a three-dimensional corrugated design, the effective filtration area is increased by 125%-150% compared to a flat screen of the same size, greatly improving fluid handling capacity.
• Flat Screen:Simple structure,low cost,suitable for primary filtration of standard flow rates.
3. Fixing Method: Hook Strip
Soft & Hook Strip Flat Screen: Designed specifically for machines with manual tensioning, it is easy to install and has a wide range of compatibility.
Ⅲ. Deep Dive into the API RP 13C Standard
In the international market, API RP 13C is the only globally recognized standard for measuring screen performance. It replaces the previously vague definition of "mesh count" with the following two key indicators:
Metric | Technical Definition | Operational Impact |
D100 Cut Point | The particle size (measured in microns) that is 100% intercepted or removed by the screen. | Directly determines filtration precision and solids control quality. |
Conductance | Measures the fluid flow capacity through the screen (expressed in kilodarcy per millimeter, kD/mm). | Determines the fluid handling capacity and overall processing throughput. |
Yuanpeng promises: All our replacement shaker screens are tested in strict accordance with API standards to ensure that every screen achieves the expected filtration effect.
Ⅳ.Brand Compatibility Guide: Brandt®, Derrick®, and M-I SWACO
To minimize customer downtime, our replacement screens are perfectly compatible with the following mainstream models:
• Brandt® Series: Perfect replacements for King Cobra, Alpha, D380/285P, LCM-2D, and VSM 300 screens. The composite frame solution for the VSM 300 is particularly recommended.
• Derrick® Series: Designed specifically for Derrick® FLC 500 / FLC 2000, HYPERPOOL®,and DUAL POOL® 600, providing high-capacity wave-type screens.
• M-I SWACO®: Compatible with Mongoose Pro / PT, MD-2/3, and Meerkat models, featuring a precise wedge-locking design.
Ⅴ. How to choose the right replacement screen?
When selecting screens, please refer to the following logic to optimize drilling costs:
• Formation properties: For viscous formations, polyurethane screens are recommended for better anti-clogging performance.
• Fluid flow rate: For large flow rates, wave-type screens are preferred to increase the flow area.
• Expected costs: For long-term storage, composite frames are a more environmentally friendly and durable option.
Ⅵ. Why choose Yuanpeng as your supplier?
Yuanpeng, a leading Chinese Shaker Screen Manufacturer, boasts 20 years of professional experience.
• Factory Direct Pricing: Save 30%-50% on procurement costs compared to OEM.
• Global Stock Available: Common mesh sizes (API 20-325) are in stock, supporting fast global shipping.
• Customization Services: Custom specifications are available.
Conclusion
Optimize drilling efficiency by choosing a high-quality Shale Shaker Screen. Whether you're operating a Derrick® FLC 2000 or a Brandt® King Cobra, Far East provides the most reliable replacement solution.
